Introduction

Presentation version of these notes.

Note

This chapter is designed to reinforce the material to be introduced in Week 2 of EG-143 Digital Systems and so it will not be delivered as part of a formal lecture in EG-151 Microcontrollers.

Instead, we have provided some self-study materials in the Canvas Pages Introduction to Data Representation and Two’s complement, BCD, Binary Fractions and A.S.C.I.I as well as in Appendix A: Other Data Representations.

Important

This material is examinable in EG-151 but there will not be a formal lecture. You should therefore read these notes for revision for the class test, try the execises and complete the quiz Quiz Week 1(b) - Data Representation.

Topics Covered in this Lecture

• Section 1 Data Representations
• Section 2 Numbering Systems and Base Conversion
• Section 3 Binary Addition and Subtraction
• Section 4 Introduction to the Status Register

Data Representations

How is Data stored Digitally?

Modern digital processors and microcontrollers contain millions of solid state devices known as transistors (Figure 1).

Figure 1: A single transistor

With one transistor we can control the flow of electrons creating an object with two states – on or off. This is known as a binary system.

We can use the output (or input if wired to ground) of this transistor to connect to other transistors forming: logic gates and eventually a bit of memory.

By arranging six of these transistors appropriately we can create a memory device that can store one bit of data (Figure 2).

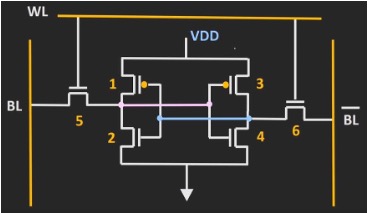

Figure 2: One bit of SRAM memory¹

Terminology

1 bit = 1 data unit

1 nybble = 4 data units (4 bits)

1 byte = 8 data units (8 bits, 2 nybbles)

1 word = 16 data units (16 bits, 2 bytes, 4 nybbles)

Numbering Systems and Base Conversion

Decimal Number Representation

Take the decimal number (Base 10) 4623, what does this representation mean?

\[4623\]

\[4000 + 600 + 20 + 3\]

\[(4\times 1000) + (6\times 100) + (2\times 10) + (3\times 1)\]

\[\left(4\times 10^3\right) + \left(6\times 10^2\right) + \left(2\times 10^1\right) + \left(3\times 10^0\right)\]

We can break down any base 10 (decimal) number \(N\) in the same way using the expression:

\[N_{10} = \cdots + \left(X\times 10^3\right) + \left(X\times 10^2\right) + \left(X\times 10^1\right) + \left(X\times 10^0\right)\]

where \(X\) is any digit in the set \(\{0, 1, 2, 3, 4, 5, 6, 7, 8, 9\}\).

What About Other Bases?

We can apply the same techniques to any other base to convert the value into decimal (base 10).

For programming (and digital systems more generally), the binary (base 2), octal (base 8) and hexadecimal (base 16) representations are commonly used²

Binary (base 2)

\[N_2 = \cdots + \left(X\times 2^5\right) + \left(X\times 2^4\right) + \left(X\times 2^3\right) + \left(X\times 2^2\right) + \left(X\times 2^1\right) + \left(X\times 2^0\right)\]

where \(X\) is any digit in the set \(\{0, 1\}\).

Example 1

Consider the binary representation \(N_2 = 10010011\). What is the value of \(N_2\) in decimal base 10?

Solution

\[N_{10} = \left(1\times 2^7\right) + \left(0\times 2^6\right) + \left(0\times 2^5\right) + \left(1\times 2^4\right) + \left(0\times 2^3\right) + \left(0\times 2^2\right) + \left(1\times 2^1\right) + \left(1\times 2^0\right)\]

\[N_{10} = \left(1\times 128\right) + \left(0\times 64\right) + \left(0\times 32\right) + \left(1\times 16\right) + \left(0\times 8\right) + \left(0\times 4\right) + \left(1\times 2\right) + \left(1\times 1\right)\]

\[N_{10} = 128 + 16 + 2 + 1\]

\[N_{10} = 147_{10}\]

Octal (base 8)

Octal:

\[N_{8} = \cdots + \left(X\times 8^5\right) + \left(X\times 8^4\right) + \left(X\times 8^3\right) + \left(X\times 8^2\right) + \left(X\times 8^1\right) + \left(X\times 8^0\right)\]

where \(X\) is any digit in the set \(\{0, 1, 2, 3, 4, 5, 6, 7\}\).

Example 2

Consider the octal representation \(N_8 = 712\). What is the value of \(N_8\) in decimal base 10?

Solution

\[N_8 = 713\]

\[N_{10} = \left(7\times 8^2\right) + \left(1·8^1\right) + \left(2·8^0\right)\]

\[N_{10} = (7\times 64) + (1\times 8) + (2\times 1)\]

\[N_{10} = 448 + 8 + 2\]

\[N_{10} = 458_{10}\]

Hexadecimal (base 16)

\[N_{16} = \cdots + \left(X\times 16^5\right) + \left(X\times 16^4\right) + \left(X\times 16^3\right) + \left(X\times 16^2\right) + \left(X\times 16^1\right) + \left(X\times 16^0\right)\]

where \(X\) is any digit in the set \(\{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, \textrm{A}, \textrm{B}, \textrm{C}, \textrm{D}, \textrm{E}, \textrm{F}\}\)³.

Example 3

Consider the hexadecimal representation \(N_{16} = 3\textrm{C}4\). What is the value of \(N_{16}\) in decimal base 10?

Solution

\[N_{16} = \left(3\times 16^2\right) + \left(\textrm{C}\times 16^1\right) + \left(4\times 16^0\right)\]

\[N_{10} = 3\times 256 + 12\times 16 + 4\times 1\]

\[N_{10} = 768 + 192 + 4\]

\[N_{10} = 964_{10}\]

Decimal Number Conversion

A decimal number can be converted into any other base using the divide-by-\(n\) method where \(n\) represents the desired base.

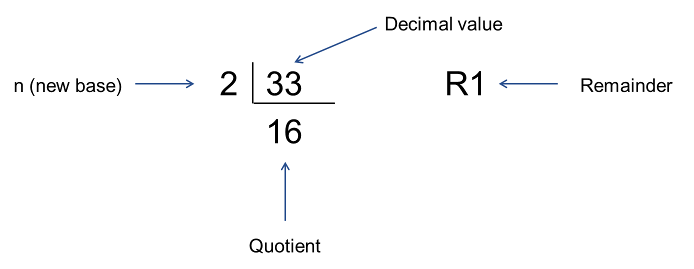

Figure 3: a step in the division-by-\(n\) method of decimal number conversion.

Step 1 (see Figure 3) − Divide the decimal number by the value of the new base and get the quotient and a remainder.

Step 2 − Keep dividing the quotient of the previous divide by the new base and record the remainder

Step 3 − Repeat Step 2, until the quotient becomes zero

Step 4 – Read the remainders from bottom (MSB) to top (LSB).

Example 4

Convert \(28_{10}\) into binary (base 2).

Solution

Step 1: \(28 \div 2 = 14\) remainder \(0\)

Step 2: \(14 \div 2 = 7\) remainder \(0\)

Step 3: \(7 \div 2 = 3\) remainder \(1\)

Step 4: \(3 \div 2 = 1\) remainder \(1\)

Step 5: \(1 \div 2 = 0\) remainder \(1\)

Binary value: \(28_{10} = 11100_{2}\).

Confirmation

\[\begin{align} 11000_2 &= \left(1\times 2^4\right) + \left(1\times 2^3\right) + \left(1\times 2^2\right) + \left(0\times 2^1\right) + \left(0\times 2^0\right)\\ &= \left(1\times 16\right) + \left(1\times 8\right) + \left(1\times 4\right) + \left(0\times 2\right) + \left(0\times 1\right)\\ &= 16 + 8 + 4\\ &= 28_{10} \end{align}\]

Example 5

Convert \(28_{10}\) into octal (base 8).

Solution

Step 1: \(28 \div 8 = 3\) remainder \(4\)

Step 2: \(3 \div 8 = 0\) remainder \(3\)

Octal value: \(28_{10} = 34_{8}\).

Confirmation

\[\begin{align} 34_8 &= \left(3\times 8^1\right) + \left(4\times 8^0\right)\\ &= \left(3\times 8\right) + \left(4\times 1\right) \\ &= 24 + 4\\ &= 28_{10} \end{align}\]

Example 6

Convert \(28_{10}\) into hexadecimal (base 16).

Solution

Step 1: \(28 \div 16 = 1\) remainder \(12\,\left(\textrm{C}_{16}\right)\)

Step 2: \(1 \div 16 = 0\) remainder \(1\)

Hexadecimal value: \(28_{10} = 1\textrm{C}_{16}\).

Confirmation

\[\begin{align} 1\textrm{C}_{16} &= \left(1\times 16^1\right) + \left(\textrm{C}\times 16^0\right)\\ &= \left(1\times 16\right) + \left(12\times 1\right) \\ &= 16 + 12\\ &= 28_{10} \end{align}\]

Tricks and Tips

All numbers are stored in a computer in binary form. Depending on the encoding, each digit takes up 1 bit (binary), 3 bits (octal) or 4 bits (decimal and hexadecimal).

If the digit needs less bits than allowed for its representation, the remaining bits the the left of the number will be set to zero.

For example:

• \(1_2\) is represented as 0b00000001⁴ (binary, prefix 0b, seven padding 0 bits + 1 bit for the value 1).
• \(5_8\) is 0005 (octal prefix 0 followed two 0 digits (2 bits plus 3 bits) (00 000 101).
• \(10_{10} = 8 + 2\) is 0b00010010.
• \(\textrm{E}\) is 0x0E (hexadecimal prefix 0x followed by 0b0000, and 0b1110 = 0b00001110).

For octal and hexadecimal values, the equivalent binary number is easily obtained by grouping from the right.

• For octal, the largest digit is 7 which needs three bits. So the octal representation of an 8 bit binary number will have 2 bits (0-3) + two groups of 3 bits. The maximum number allowed is 0b11 111 111 = 0377 = \(255_{10}\).
• For hexadecimal, four bits are needed to represent all values in the range 0-F. So an 8 bit value can only represent two hexadecimal digits 0x00 to 0xFF.

To convert a binary number to octal or heaxdecimal, just group the binary digits and then read off the value.

Example 7

Convert the binary number 0x000011101 to octal and hexadecimal. Give the value in decimal.

Solution

Grouping 0x000011101 by threes gives 00 + 011 + 101 = 0035 = \(35_8\).

Grouping 0x000011101 by fours gives 0001 + 1101 = 0x01D = \(1\textrm{D}_{16}\).

Taking the octal value \(62_8 = \left(0\times 8^2\right) + \left(3\times 8^1\right) + (5\times 8^0) = 0 + 24 + 5 = 29_{10}\).

Example 8

Convert the octal number \(62_8\) (0062) to binary and hexadecimal. Give the value in decimal.

Solution

The octal digits \(6_8\) and \(2_8\) are the three-bit binary values 0b110 and 0b010 respectively. So the equivalent 8-bit binary byte is obtained by combining these binary values and prepending with two zeros: 0b00 110 010 \(\to\) 0b00110010.

Grouping the binary number 0b00110010 in blocks of 4 gives 0b 0011 0010 which gives the hexdecimal digits \(3_{16}\) and \(2_{16}\) respectively. So \(62_8 = 32_{16}\).

The equivalent decimal number is \(\left(3\times 16^1\right) + \left(2\times 16^0\right) = 48 + 2 = 50_{10}\).⁵

Summary of number systems

Table 1 shows the equivalent binary, octal and hexadecimal values for decimal numbers 0-16. Note that we need just 1 nybble to represent a value in the range 0-154 but we need two nybbles (1 byte) for numbers greater than 15. The maximum value representable in one byte of data is \(2^8 - 1 = 255\). The concept can of course be extended to words (16 bits). The maximum value that can be represented with 16 bits is \(2^{16} - 1 = 65,535\).

Table 1: Representation of integer values in 8 bit computer systems

Decimal (Code)	Binary (Code)	Octal (Code)	Hexadecimal (Code)
\(0\) (0)	\(0\) (0b00000000)	\(0\) (000)	\(0\) (0x00)
\(1\) (1)	\(1\) (0b00000001)	\(1\) (001)	\(1\) (0x01)
\(2\) (2)	\(10\) (0b00000010)	\(2\) (002)	\(2\) (0x02)
\(3\) (3)	\(11\) (0b00000011)	\(3\) (003)	\(3\) (0x03)
\(4\) (4)	\(100\) (0b00000100)	\(4\) (004)	\(4\) (0x04)
\(5\) (5)	\(101\) (0b00000101)	\(5\) (005)	\(5\) (0x05)
\(6\) (6)	\(110\) (0b00000110)	\(6\) (006)	\(6\) (0x06)
\(7\) (7)	\(111\) (0b00000111)	\(7\) (007)	\(7\) (0x07)
\(8\) (8)	\(1000\) (0b00001000)	\(10\) (010)	\(8\) (0x08)
\(9\) (9)	\(1001\) (0b00001001)	\(11\) (011)	\(9\) (0x09)
\(10\) (10)	\(1010\) (0b00010010)	\(12\) (012)	\(\mathrm{A}\) (0x0A)
\(11\) (11)	\(1011\) (0b00001011)	\(13\) (013)	\(\mathrm{B}\) (0x0B)
\(12\) (12)	\(1100\) (0b00001100)	\(14\) (014)	\(\mathrm{C}\) (0x0C)
\(13\) (13)	\(1101\) (0b00001101)	\(15\) (015)	\(\mathrm{D}\) (0x0D)
\(14\) (14)	\(1110\) (0b00001110)	\(16\) (016)	\(\mathrm{E}\) (0x0E)
\(15\) (15)	\(1111\) (0b00001111)	\(17\) (017)	\(\mathrm{F}\) (0x0F)
\(16\) (16)	\(10000\) (0b0010000)	\(20\) (020)	\(10\) (0x10)

Other binary encodings

Numbers are not the only type of data that can be encoded using binary values. In fact, all data that is manipulated by computers is represented by an encoding of binary numbers.

Some examples of codings that you will see are:

• Characters which are represented as ASCII code (7 bits), extended ASCII (8 bits) or UTF (1-4 bytes) used to represent other characters (e.g. for accented characters, other alphabets and languages, math symbols, emojis) and other purposes.
• Other numerical encodings, such as Binary Coded Decimal (BCD)
• Machine codes, which is how computers represent exercutable programmes, are also represented in binary numbers. These are usually generated by an assembler, compiler, or interpreter from human-readable code that is stored in text files that are themselves use characters encoded in ASCII or UTF.

Additional self-directed learning materials which explore some of these extra encodings are provided on Canvas.

We will dicuss some of the encodings used for machine code in later lectures.

Binary Addition and Subtraction

How do computers add and subtract numbers?

Binary Arithmetic

Microcontrollers work with 0’s and 1’s (binary).

In order to add or subtract two binary numbers there are a series of rules similar to in decimal arithmetic.

Rules for Binary Addition

\[\begin{align*} 0 + 0 &= 0\\ 0 + 1 &= 1\\ 1 + 0 &= 1\\ 1 + 1 &= 10\quad\textrm{i.e.}\, 0 + \textrm{carry}\, 1 \end{align*}\]

Example 10

Confirm using binary addition that \(14_{10} + 19_{10} = 33_{10}\).

Solution (Figure 4)

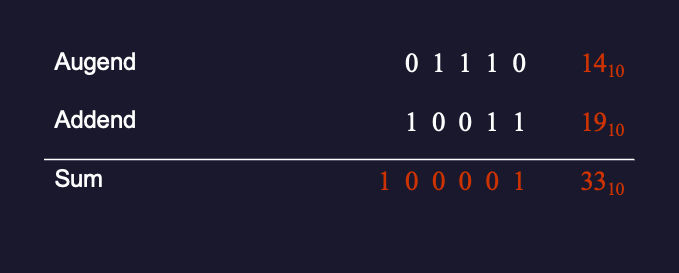

Figure 4: Example 10: \(14_{10} + 19_{10} = 33_{10}\)

Example 11

Confirm using binary addition that \(46_{10} + 147_{10} = 193_{10}\).

Solution (Figure 5)

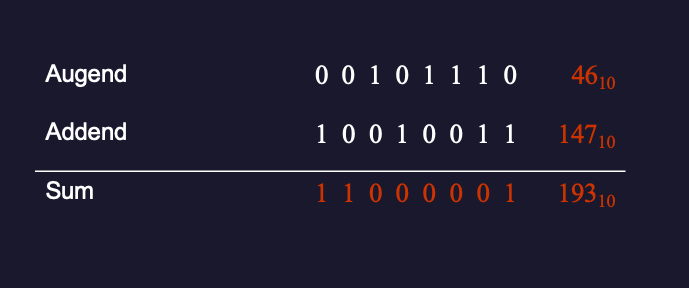

Figure 5: Example 11: \(46_{10} + 147_{10} = 193_{10}\)

Rules for Binary Subtraction

\[\begin{align*} 0 - 0 &= 0\\ 1 - 0 &= 1\\ 1 - 1 &= 0\\ 0 - 1 &= 10 - 1 +\,\textrm{borrow} = 1+ \textrm{borrow} \end{align*}\]

Example 12

Confirm using binary subtraction that \(27_{10} - 14_{10} = 13_{10}\).

Solution (Figure 6)

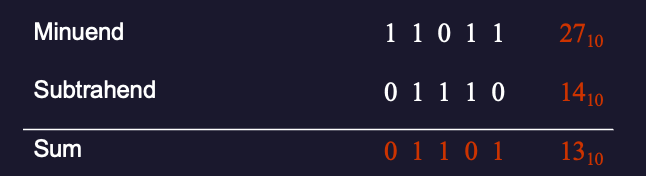

Figure 6: Example of binary subtraction: \(27_{10} - 14_{10} = 13_{10}\)

Example 13

Show using binary subtraction that \(175_{10} - 83_{10} = 92_{10}\).

Solution (Figure 7)

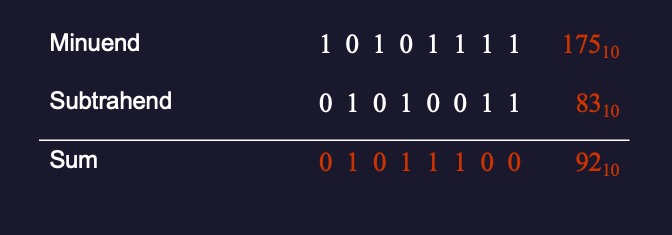

Figure 7: Example of binary subtraction: \(175_{10} - 83_{10} = 92_{10}\)

Binary Arithmetic and Flags

What happens when the result is larger than 8-bits?

Extended Rules for Binary Addition

We need to extend the rules of binary addition to introduce an overflow that is indicated by a carry flag.

\[\begin{align*} 0 + 0 &= 0 \\ 0 + 1 &= 1 \\ 1 + 0 &= 1 \\ 1 + 1 &= 10\quad \textrm{i.e.}\, 0 + \textrm{carry}\, 1 \\ 1 + 1 + 1 &= 11\quad \textrm{i.e.}\, 1 + \textrm{carry}\, 1 \end{align*}\]

Example 14

Show using binary addition that \(110_{10} + 227_{10} = 337_{10}\).

Solution (Figure 8)

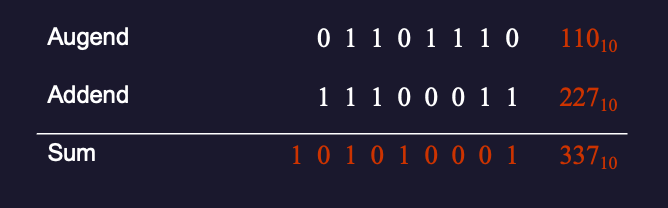

Figure 8: Example of binary subtraction with overflow: \(110_{10} + 227_{10} = 337_{10}\)

The overflow is acknowledged in the status register by the carry flag

Introduction to the Status Register

The microcontroller has an 8-bit register containing a number of flags which can be set based on the condition of the microcontroller.

The status register for the Atmel ATMega328/P is illustrated in Figure 9.

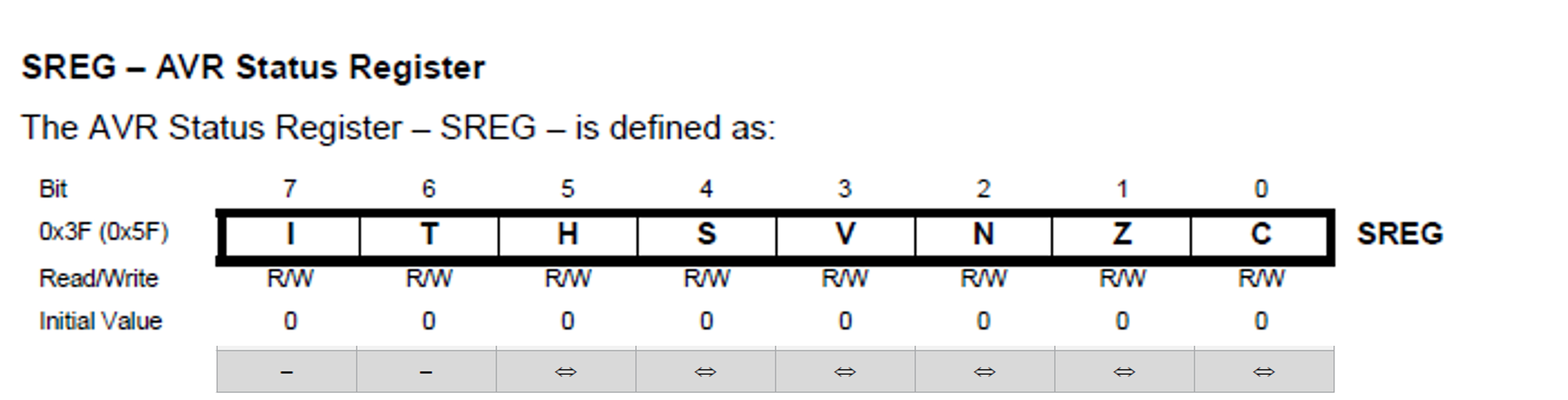

Figure 9: The Status Register of the Atmel ATMega328/P

Status register flags associated with binary addition and subtraction

• The Half Carry Flag H is set (to 1) if there was a carry from bit 3; it is cleared (set to 0) otherwise.
• The Zero Flag Z is set if the result is 0x00000000; cleared otherwise.
• The Carry Flag C is set if there was a carry from the most significant bit (MSB)⁶ of the result; cleared otherwise.

We will look at the status register in detail in Architecture of the Atmel ATmega 328 Microcontroller.

Binary Arithmetic Example 14

Figure 10 shows the condition of the status register after completing the addition from Example 14.

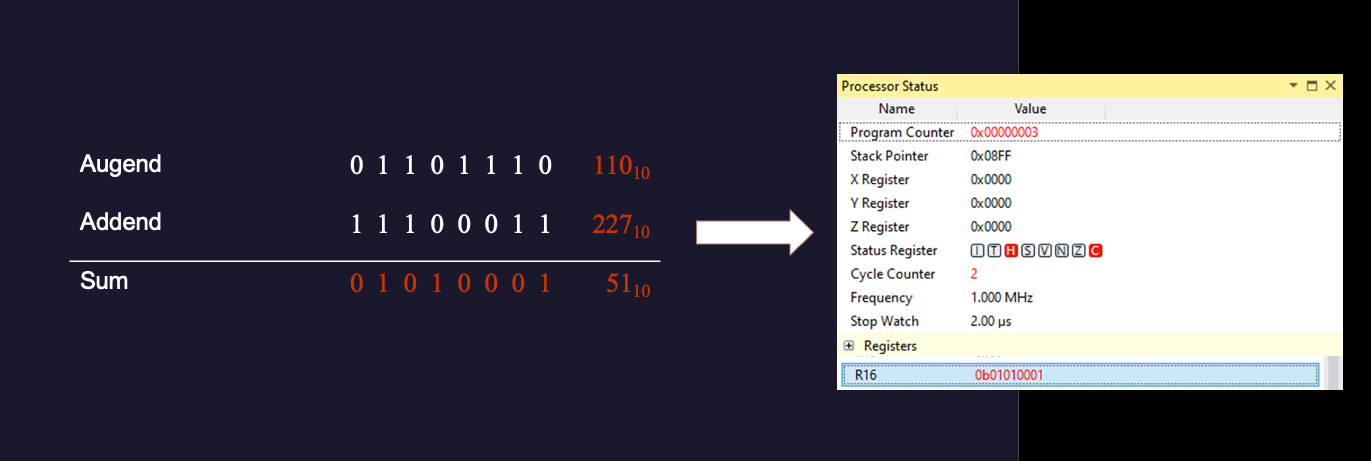

Figure 10: The condition of the status register after completing the sum \(110_{10} + 227_{10} = 337\).

Other Data Representations

We have provided notes and videos that introduce other commonly used data representations in Appendix A: Other Data Representations.

Important

This chapter and Appendix A are examinable and you should study both as part of your preparation for the class test.

Next

In the next lecture we will look at the Architecture of the Atmel ATmega 328 Microcontroller.
